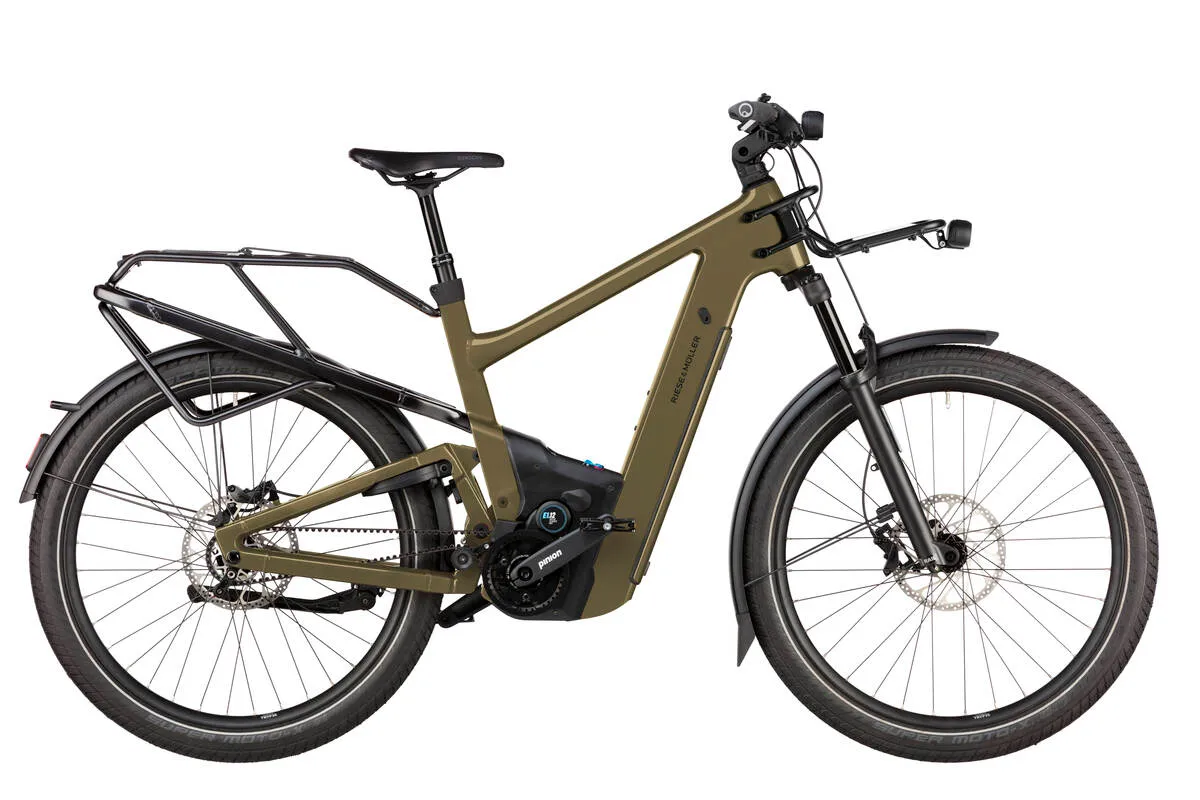

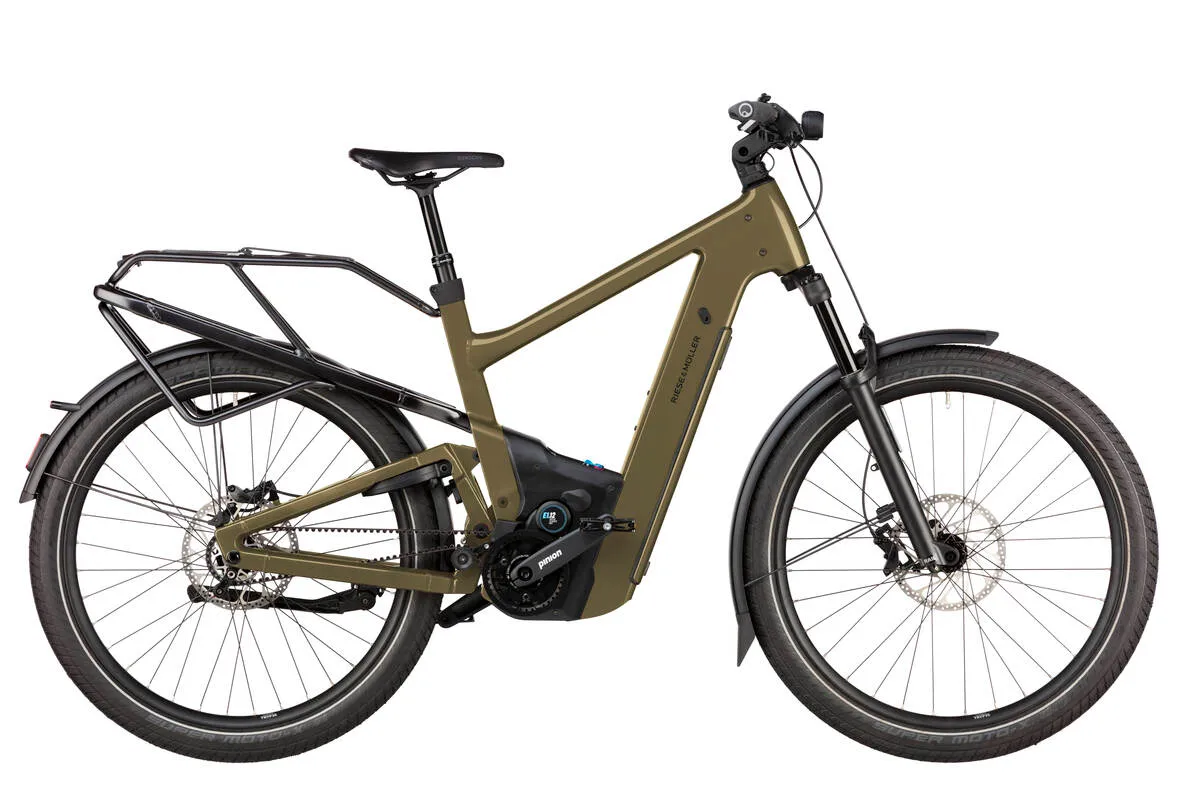

Riese & Müller Delite5
Prices from: £7,889
From: £404.19 per month
(For 12 months with Cycle to Work)
The ultimate e-bike: Riese & Müller’s Delite5 combines full suspension, 800Wh battery and Pinion drive system for superior comfort and performance.
“We thought of everything and stopped at nothing in the development of the Delite5. The full-suspension e-bike boasts outstanding workmanship and is durable and low-maintenance – for a magnificent riding experience even off-road.”
The Ultimate All-Terrain E-Bike Experience: Introducing the Delite5
Experience unparalleled versatility with the Delite5, a premium full-suspension e-bike that’s redefining what’s possible on two wheels. Whether you’re conquering your daily commute or embarking on epic weekend adventures, this masterpiece of engineering delivers exceptional performance across all terrains.
At the heart of the Delite5 lies the innovative Pinion E-Drive System, combining a powerful motor with a sophisticated 12-speed integrated gear shift. Paired with an impressive 800Wh removable battery seamlessly integrated into the downtube, you’ll have the range and power to tackle any journey with confidence.
Built with meticulous attention to detail, the Delite5’s frame is crafted from 30% recycled aluminium, demonstrating our commitment to sustainability without compromising on quality. The sophisticated suspension system, featuring Fox AWL 34 front suspension and Fox Float Rhythm rear shock, ensures a smooth, controlled ride even on challenging surfaces.
Smart technology meets security with the integrated RX Connect system. Track your bike’s location, activate motion alerts, and analyse your riding statistics through the dedicated app - included free for the first year. The frame-mounted ABUS lock provides additional peace of mind when parking.
Key Features:
- Full suspension system with 120mm front travel
- Powerful Pinion E-Drive System with 12-speed gearing
- 800Wh integrated battery
- Premium Supernova lighting system
- Dropper seatpost for optimal positioning
- Schwalbe Super Moto-X tyres for superior grip
- Integrated RX Connect smart features
- Available in three frame sizes
Find out more about ordering a bike from us and getting it delivered.
Options – all the bells and whistles
Variations – different available configurations of this bike
-
Delite5 GT pinion
Pinion MGU E1.12, TubePack 800 Wh, 12-speed integrated gear shift.
£7,889
Features – choose the size and colour for you
-
Frame sizes
47, 51, 56
-
Colours
Amber, stone grey
Optional extras available for this bike
-
Cockpit with comfort display
Adjustable larger display with USB-C device charging
£187
-
Cockpit with multi-adapter
Extend the compact remote display with your mobile phone, and USB-C device charging
£47
-
Offroad kit
Nobbly off-road tyres (Schwalbe Johnny Watts) and upgraded wide flat pedals
£47
-
Front carrier
Secure up to 5kg of luggage on a front rack
£94
-
Pannier rack
Minimalist rack that can take two panniers weighing up to 7.5kg each – can be added at no additional cost
-
Additional chain lock with vaude bag
Sturdy ABUS chain lock which plugs into the frame lock and extends your bike’s security, 130cm long, 6mm thick and stored in a Vaude bag made from 100% recycled polyester which is permanently attached to the saddle
£47
Specifications – frame geometry information
| Top tube length [cm] | 57.5 |
|---|---|
| Reach [cm] | 40 |
| Stack [cm] | 65.5 |
| Head tube angle [°] | 67 |
| Seat tube angle [°] | 75 |
| Trail [mm] | 103 |
| Wheelbase [cm] | 120.5 |
| Bottom bracket height [cm] | 32.5 |
| Stand-over height [cm] | 84 |
| Chainstay length [cm] | 49.5 |
| Overall length [cm] | 194 |
| Wheel size ["] | 27.5 |
| Head tube length [mm] | 153 |
| Headset size ["] | 1 1/2 |
| Front suspension travel [mm] | 120 |
| Effective rear suspension travel [mm] | 110 |
| Rear shock length [mm] | 165 |
| Front shock mounting width [mm] | 54 |
| Rear shock mounting width [mm] | 22.2 |
| Front shock locking screw | 10 |
| Rear shock locking screw | 8 |
| Rear suspension ratio | 2.44 |
| Rear dropout width [mm] | 148 |
| Weight [kg] | 34.5 |
| Gross vehicle weight rating [kg] | 160 |
| Top tube length [cm] | 62.1 |
|---|---|
| Reach [cm] | 44 |
| Stack [cm] | 67.5 |
| Head tube angle [°] | 67 |
| Seat tube angle [°] | 75 |
| Trail [mm] | 103 |
| Wheelbase [cm] | 125.5 |
| Bottom bracket height [cm] | 32.5 |
| Stand-over height [cm] | 84 |
| Chainstay length [cm] | 49.5 |
| Overall length [cm] | 199 |
| Wheel size ["] | 27.5 |
| Head tube length [mm] | 174 |
| Headset size ["] | 1 1/2 |
| Front suspension travel [mm] | 120 |
| Effective rear suspension travel [mm] | 110 |
| Rear shock length [mm] | 165 |
| Front shock mounting width [mm] | 54 |
| Rear shock mounting width [mm] | 22.2 |
| Front shock locking screw | 10 |
| Rear shock locking screw | 8 |
| Rear suspension ratio | 2.44 |
| Rear dropout width [mm] | 148 |
| Weight [kg] | 34.7 |
| Gross vehicle weight rating [kg] | 160 |
| Top tube length [cm] | 66.6 |
|---|---|
| Reach [cm] | 48 |
| Stack [cm] | 69.5 |
| Head tube angle [°] | 67 |
| Seat tube angle [°] | 75 |
| Trail [mm] | 103 |
| Wheelbase [cm] | 130.5 |
| Bottom bracket height [cm] | 32.5 |
| Stand-over height [cm] | 83.1 |
| Chainstay length [cm] | 49.5 |
| Overall length [cm] | 204 |
| Wheel size ["] | 27.5 |
| Head tube length [mm] | 186 |
| Headset size ["] | 1 1/2 |
| Front suspension travel [mm] | 120 |
| Effective rear suspension travel [mm] | 110 |
| Rear shock length [mm] | 165 |
| Front shock mounting width [mm] | 54 |
| Rear shock mounting width [mm] | 22.2 |
| Front shock locking screw | 10 |
| Rear shock locking screw | 8 |
| Rear suspension ratio | 2.44 |
| Rear dropout width [mm] | 148 |
| Weight [kg] | 34.8 |
| Gross vehicle weight rating [kg] | 160 |
Confused?
Check out our buyers’ guide which explains what all this stuff means! Or find out more about ordering an e-bike from E-Radicals.
